Gridding scattered data with blockmedian and surface

The pygmt.surface function interpolates irregularly spaced (x, y, z) observations onto a regular grid. Before interpolation, pygmt.blockmedian reduces redundant observations by returning one median value for every occupied block.

import pygmt
from pygmt.params import Axis, Frame, Position

# Load irregular ship-track observations of bathymetry off Baja California.
data = pygmt.datasets.load_sample_data(name="bathymetry")

region = [245, 255, 20, 30]
spacing = "5m"

# Calculate one representative median value for each occupied block.
reduced_data = pygmt.blockmedian(
    data=data,
    region=region,
    spacing=spacing,
    C=True,
)

# Interpolate the reduced observations onto a regular grid.
grid = pygmt.surface(
    data=reduced_data,
    region=region,
    spacing=spacing,
    lower="d",
    upper="d",
)

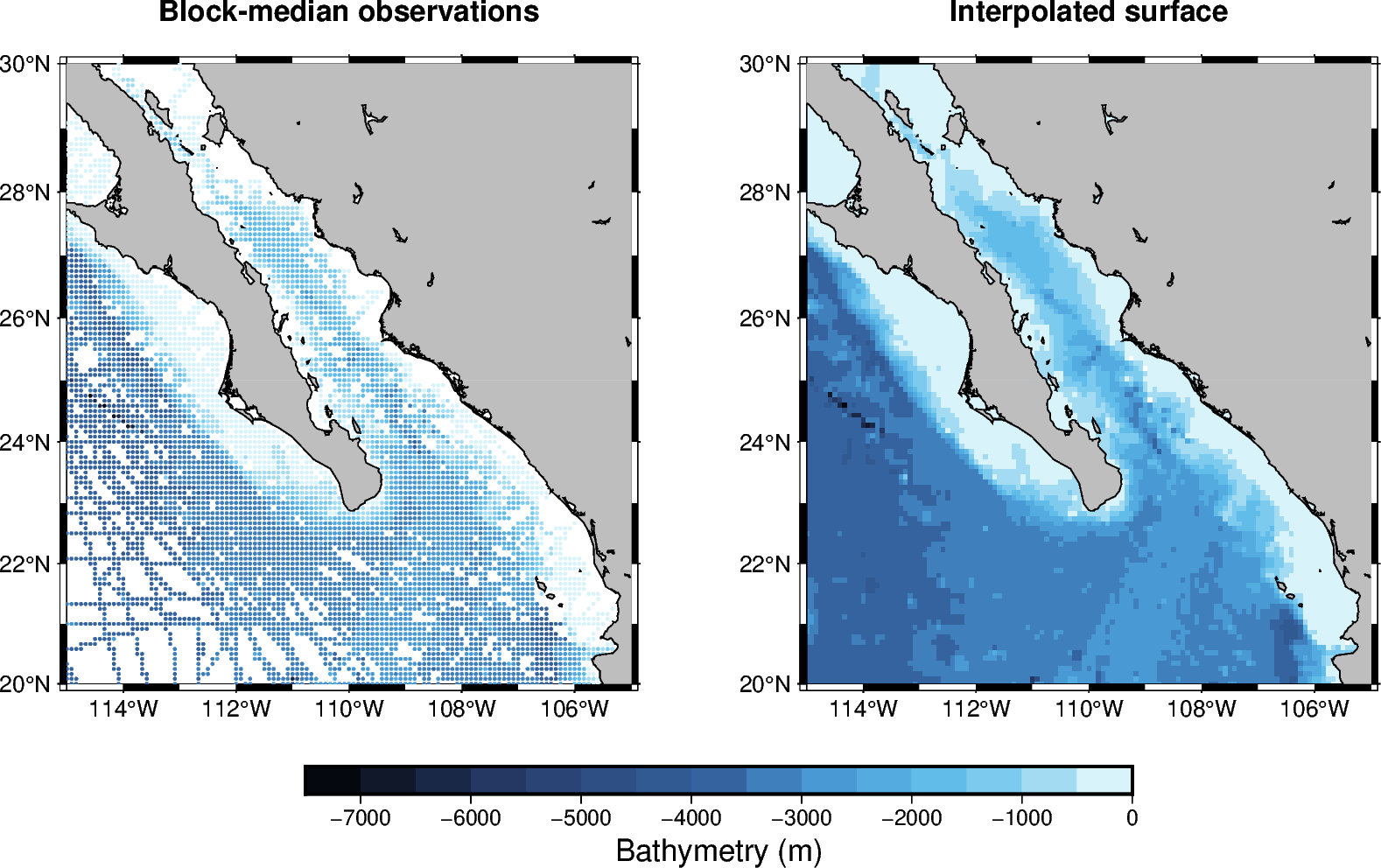

fig = pygmt.Figure()

pygmt.makecpt(cmap="gmt/geo", series=[-7500, 0, 500])

pygmt.config(
    FONT_TITLE="12p",
    MAP_TITLE_OFFSET="4p",
)

with fig.subplot(
    nrows=1,
    ncols=2,
    figsize=("20c", "9c"),
    margins="0.5c",
):
    # Block-median observations.
    with fig.set_panel(panel=0):
        fig.basemap(
            region=region,
            projection="M?",
            frame=Frame(
                axes="WSne",
                axis=Axis(annot=2, tick=1),
                title="Block-median observations",
            ),
        )
        fig.plot(
            x=reduced_data.longitude,
            y=reduced_data.latitude,
            fill=reduced_data.bathymetry,
            style="c0.05c",
            cmap=True,
        )
        fig.coast(land="gray", shorelines="0.5p,black")

    # Interpolated surface grid.
    with fig.set_panel(panel=1):
        fig.grdimage(
            grid=grid,
            region=region,
            projection="M?",
            frame=Frame(
                axes="WSne",
                axis=Axis(annot=2, tick=1),
                title="Interpolated surface",
            ),
            cmap=True,
        )
        fig.coast(land="gray", shorelines="0.5p,black")

# Position the color bar using explicit plot coordinates:
# 10 cm is the horizontal center of the 20 cm wide subplot.
fig.colorbar(
    position=Position(
        ("10c", "-1.2c"),
        cstype="plotcoords",
        anchor="TC",
    ),
    length=12,
    width=0.4,
    orientation="horizontal",
    annot=1000,
    label="Bathymetry (m)",
)

fig.show()
